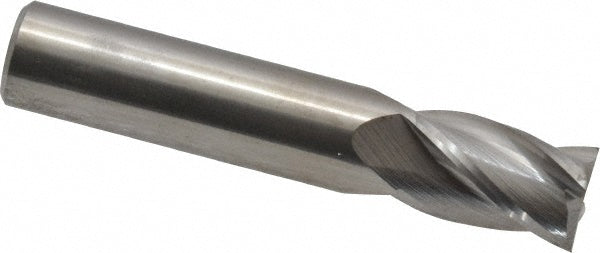

3/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16337500

M.A. Ford.

3/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16337500

MFR# 16337500Series 163

$57.76List $72.79 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide

Description

The M.A. Ford. 16337500 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 163.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in2
Shank diameter in3/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
