7/16" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16343750

M.A. Ford.

7/16" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16343750

MFR# 16343750Series 163

$64.55List $82.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide

Description

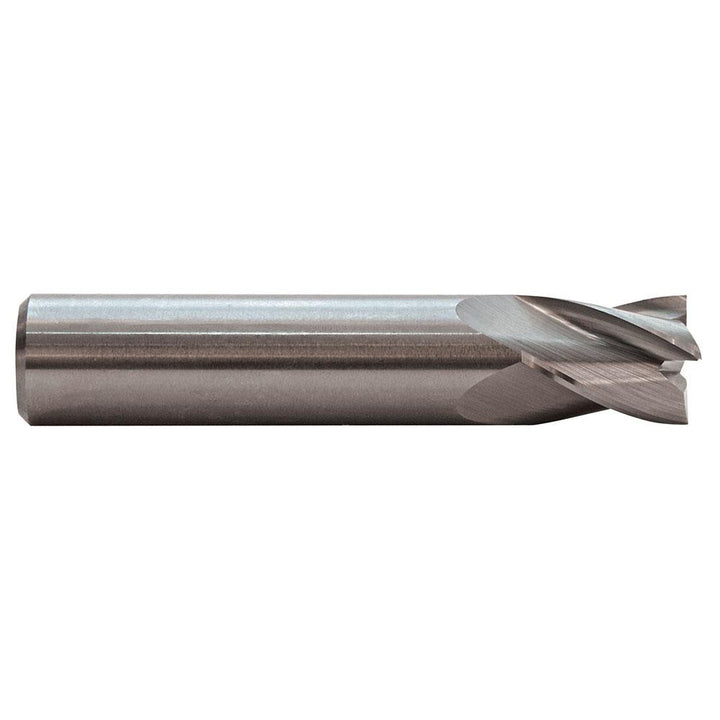

The M.A. Ford. 16343750 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 163.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in2-1/2
Shank diameter in7/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
