M.A. Ford.

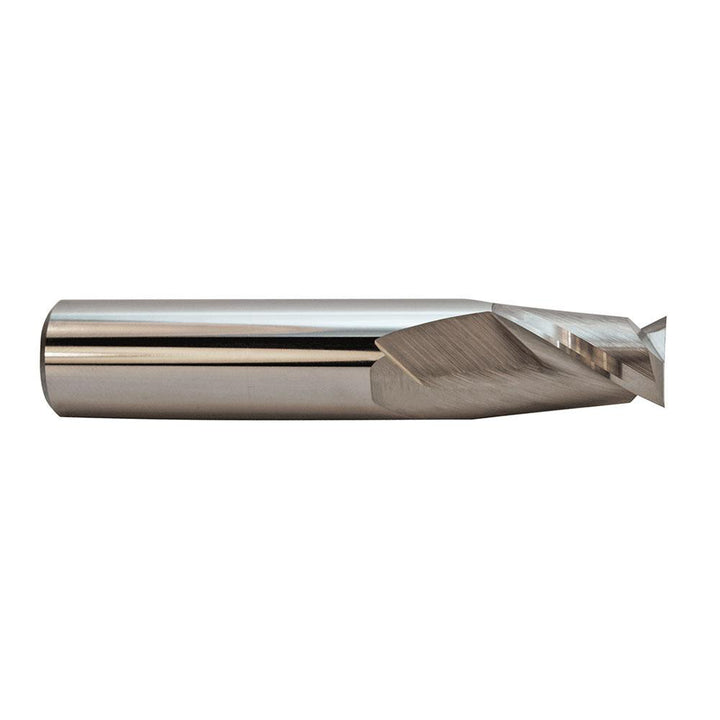

7/16" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 16443750
MFR# 16443750Series 164
$64.55List $82.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes2
MaterialSolid Carbide
Description
The M.A. Ford. 16443750 is a 7/16 2-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 164.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.003 in
Number of flutes2
Overall length in2-1/2
Shank diameter in7/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
