0.2362" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 16923620

M.A. Ford.

0.2362" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 16923620

MFR# 16923620Series 169

$30.27List $38.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

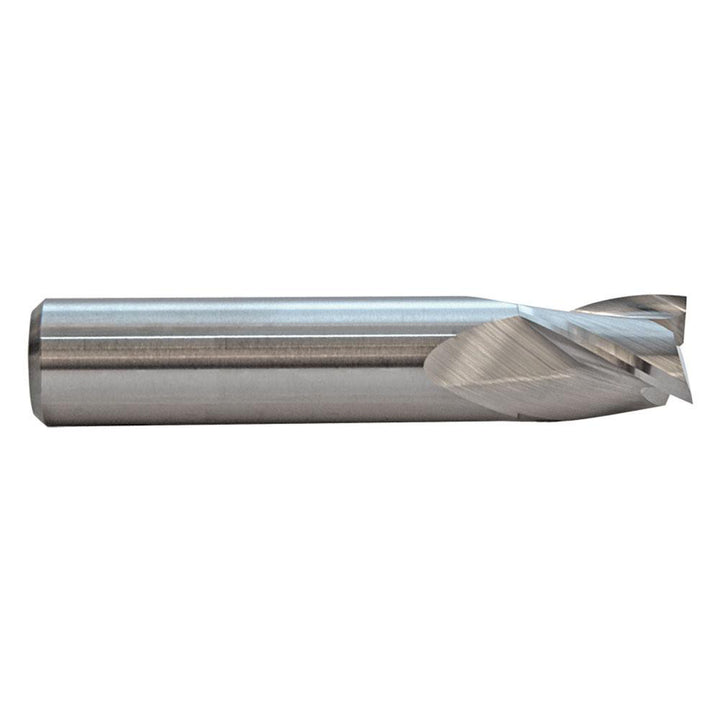

The M.A. Ford. 16923620 is a 0.2362 3-flute Solid Carbide (Micrograin) square end mill. 0.5118 length of cut. Series 169.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.5118
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.000/-0.048 mm
Number of flutes3
Overall length (mm)51
Shank diameter0.2362
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Guhring0.2362" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9034720060000 $53.90 Guhring0.2362" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9038910060000 $43.30 SGS0.2362" 3-Flute Solid Carbide Square End Mill - SGS 44701 $32.92 Kennametal0.2362" 3-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4047068 $115.03
