M.A. Ford.

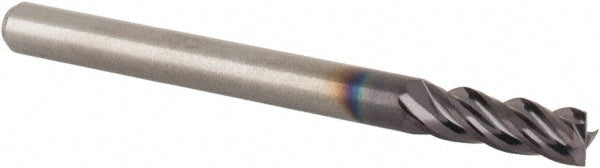

0.1772" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17717700A
MFR# 17717700ASeries 177
$46.96List $60.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingALtima
Description
The M.A. Ford. 17717700A is a 0.1772 4-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 0.3543 length of cut. Series 177.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishALtima
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35/38
Length of cut0.3543
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter0.1772
Mill diameter tolerance+0.000 to -0.048 mm
Number of flutes4
Overall length (mm)57
Shank diameter0.2362
Shank diameter tolerance+0/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
