M.A. Ford.

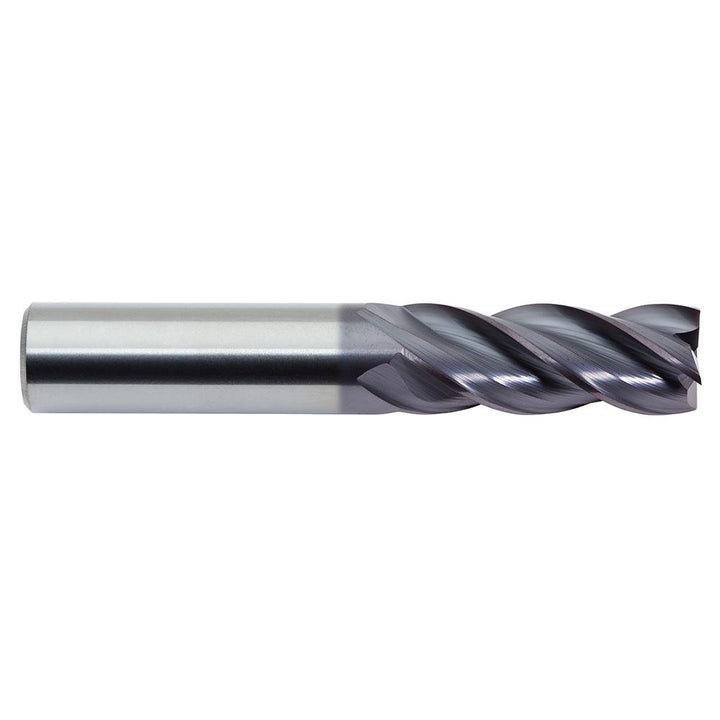

1/4" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17725000AW

MFR# 17725000AWSeries 177W

$52.64List $67.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingALtima

Description

The M.A. Ford. 17725000AW is a 1/4 4-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 1/4 length of cut, 2 overall length. Series 177W.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALtima

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35/38

Length of cut in1/4

Length of cut range0.2000 - 0.3000

Length typeStub

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes4

Overall length in2

Shank diameter in1/4

Shank diameter tolerance+0.0000/-0.00035 in

Shank typeWeldon Flat

Variable helixYes

Variable indexYes
