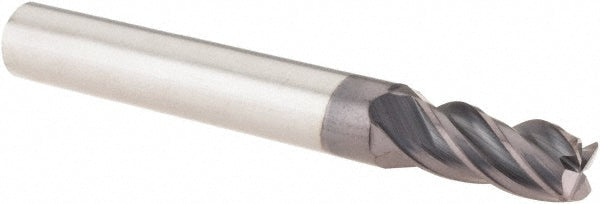

9/32in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17728104A

M.A. Ford.

9/32in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17728104A

MFR# 17728104ASeries 177

$63.97List $82.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32in
Flutes4
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17728104A is a 9/32in 4-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/16in length of cut, 2-1/2in overall length. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in5/16in
Length typeShort
Manufacturers catalog number17728104A
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in9/32in
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes4
Overall length in2-1/2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in5/16
Shank diameter in5/16in
Shank diameter tolerance+0.0000/-0.0003 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
