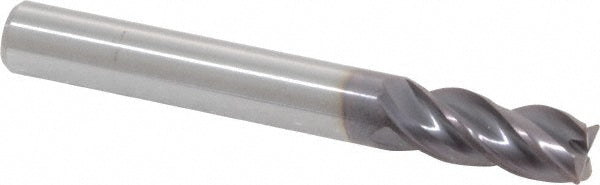

0.3150in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17731504A

M.A. Ford.

0.3150in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17731504A

MFR# 17731504ASeries 177

$58.29List $74.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17731504A is a 0.3150in 4-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0590
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut1.0000in
Length typeShort
Manufacturers catalog number17731504A
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter0.3150in
Mill diameter tolerance+0.000/-0.058 mm
Number of flutes4
Overall length (mm)63.00mm
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length (mm)19.00
Shank diameter (mm)8.00mm
Shank diameter tolerance+0.000/0.008 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
