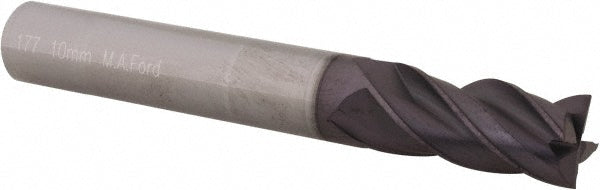

0.3937" 4-Flute Solid Carbide Square End Mill, AlTiN - M.A. Ford. 17739300A

MFR# 17739300ASeries 177

$89.88List $115.27 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 17739300A is a 0.3937 4-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 0.8661 length of cut. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35-38

Length of cut0.8661

Length of cut range0.8000 - 1.0000

Material gradeMicrograin

Mill diameter0.3937

Mill diameter tolerance+0.000/-0.058 mm

Number of flutes4

Overall length (mm)72.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Shank diameter0.3937

Shank diameter tolerance+0/-0.009 mm

Shank typeStraight

Single or double endSingle

System of measurementMetric

Variable helixYes

Variable indexYes
