M.A. Ford.

7/16" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17743700A

MFR# 17743700ASeries 177

$88.19List $113.10 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes4

MaterialSolid Carbide

CoatingALtima

Description

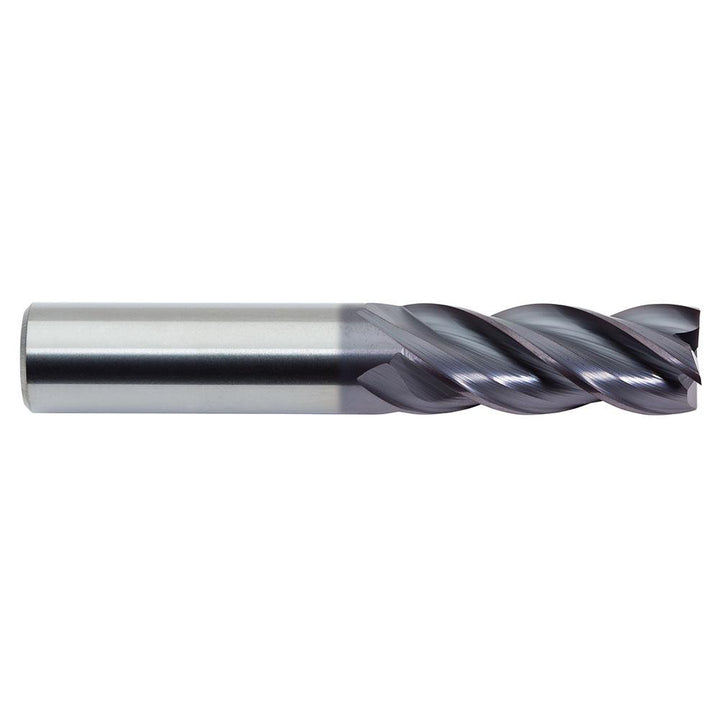

The M.A. Ford. 17743700A is a 7/16 4-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 7/16 length of cut, 2-1/2 overall length. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALtima

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle35/38

Length of cut in7/16

Length of cut range0.3000 - 0.5000

Material gradeMicrograin

Mill diameter in7/16

Mill diameter tolerance+0.000 to -0.003 in

Number of flutes4

Overall length in2-1/2

Shank diameter in7/16

Shank diameter tolerance+0/-0.00043 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
