M.A. Ford.

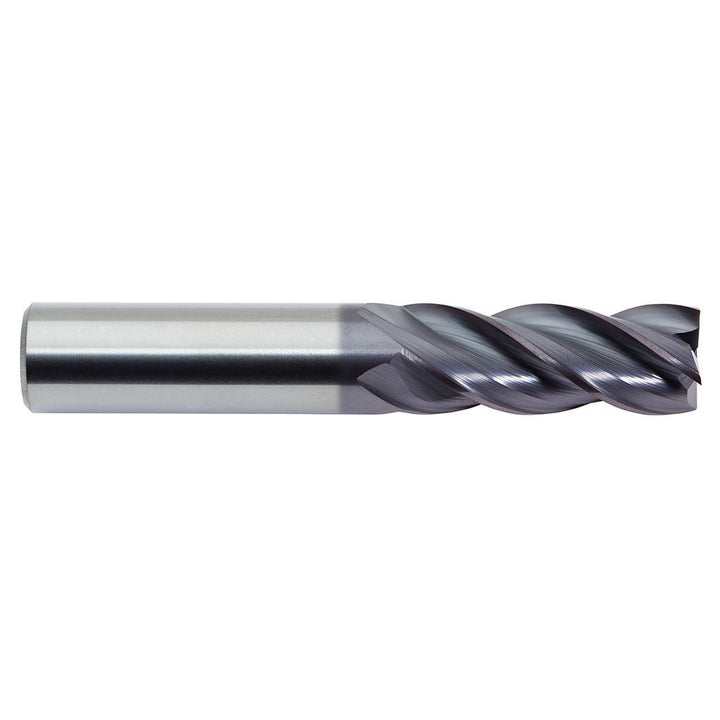

3/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 17775004A

MFR# 17775004ASeries 177

$217.95List $279.54 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 17775004A is a 3/4 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3/4 length of cut, 3 overall length. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in3/4

Length typeShort

Manufacturers catalog number17775004A

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance+0.0000 to -0.0030 in

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in3/4

Shank diameter in3/4

Shank diameter tolerance+0.0000 to -0.0005 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
