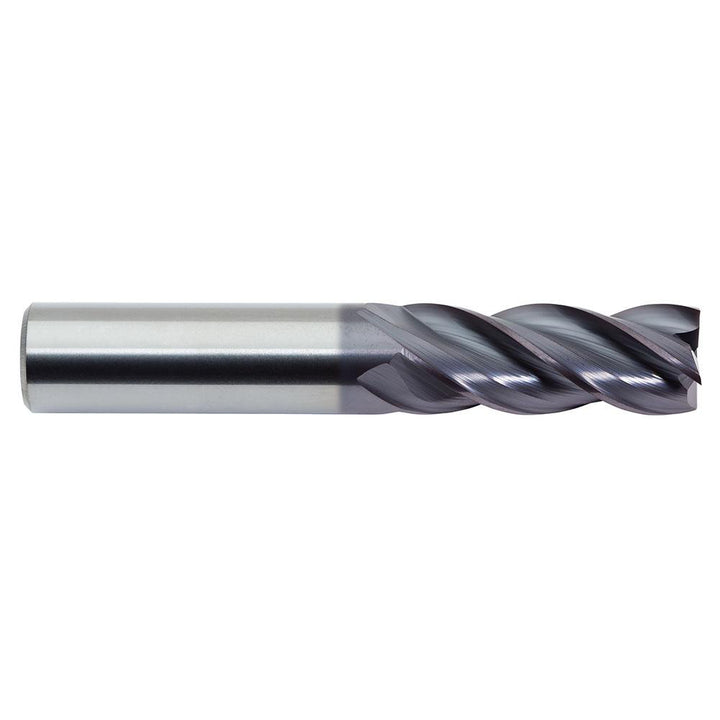

0.7874" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 17778705A

MFR# 17778705ASeries 177

$417.91List $535.99 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 17778705A is a 0.7874 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0787

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle35 - 38

Helix styleVariable

Length of cut1.2598

Length typeShort

Manufacturers catalog number17778705A

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeRoughing & Finishing

Maximum helix angle38

Mill diameter0.7874

Mill diameter tolerance+0.000 to -0.084 mm

Minimum helix angle35

Number of flutes4

Overall length (mm)104.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length (mm)38.00

Shank diameter (mm)20.00

Shank diameter tolerance+0.000 to -0.010 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
