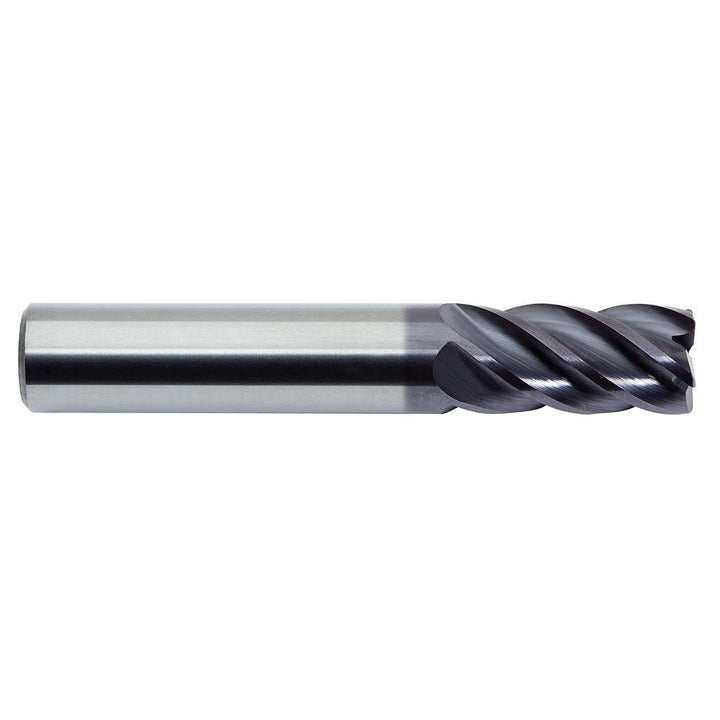

0.2362" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17823601A

M.A. Ford.

0.2362" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17823601A

MFR# 17823601ASeries 178

$54.59List $68.80 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17823601A is a 0.2362 5-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 178.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut0.5118
Length typeRegular
Manufacturers catalog number17823601A
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter0.2362
Mill diameter tolerance+0.000/-0.048 mm
Number of flutes5
Overall length (mm)57.00
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length (mm)13.00
Shank diameter (mm)6
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
