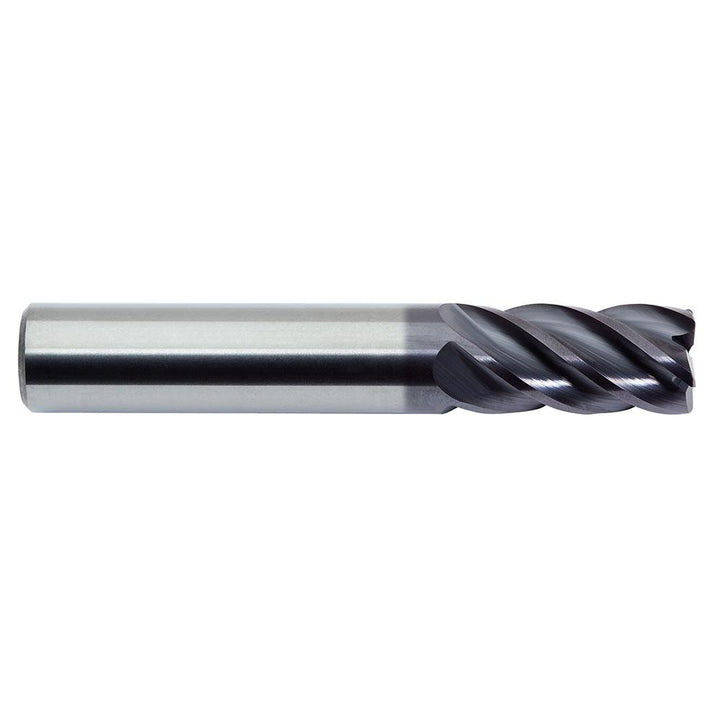

5/16in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17831204A

M.A. Ford.

5/16in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17831204A

MFR# 17831204ASeries 178

$60.23List $77.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16in
Flutes5
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17831204A is a 5/16in 5-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/16in length of cut, 2in overall length. Series 178.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in7/16in
Length typeRegular
Manufacturers catalog number17831204A
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in5/16in
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes5
Overall length in2in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in7/16
Shank diameter in5/16in
Shank diameter tolerance+0.0000/-0.0003 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
