M.A. Ford.

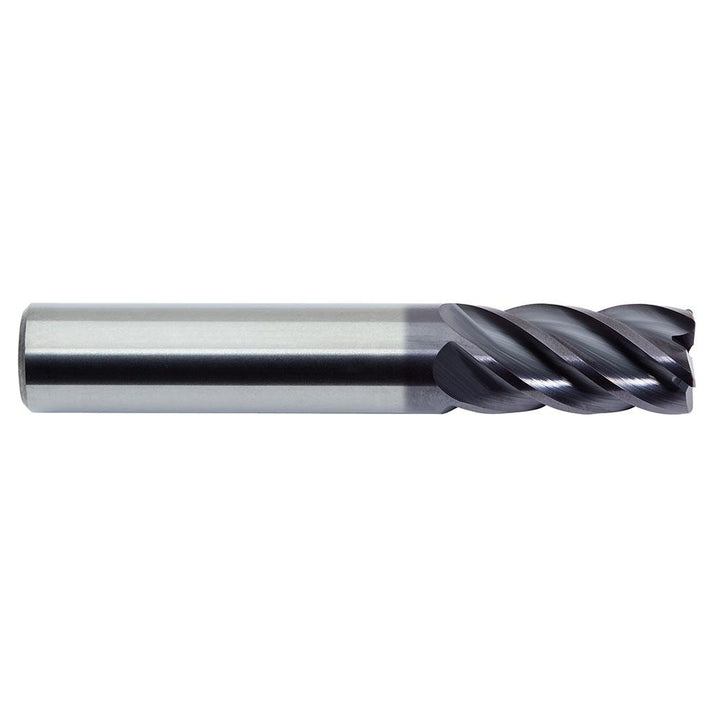

3/8" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17837504A

MFR# 17837504ASeries 178

$72.70List $93.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingALtima

Description

The M.A. Ford. 17837504A is a 3/8 5-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1/2 length of cut, 2 overall length. Series 178.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALtima

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1/2

Manufacturers catalog number17837504A

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0030 in

Number of flutes5

Overall length in2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in1/2

Shank diameter in3/8

Shank diameter tolerance+0.0000/-0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
