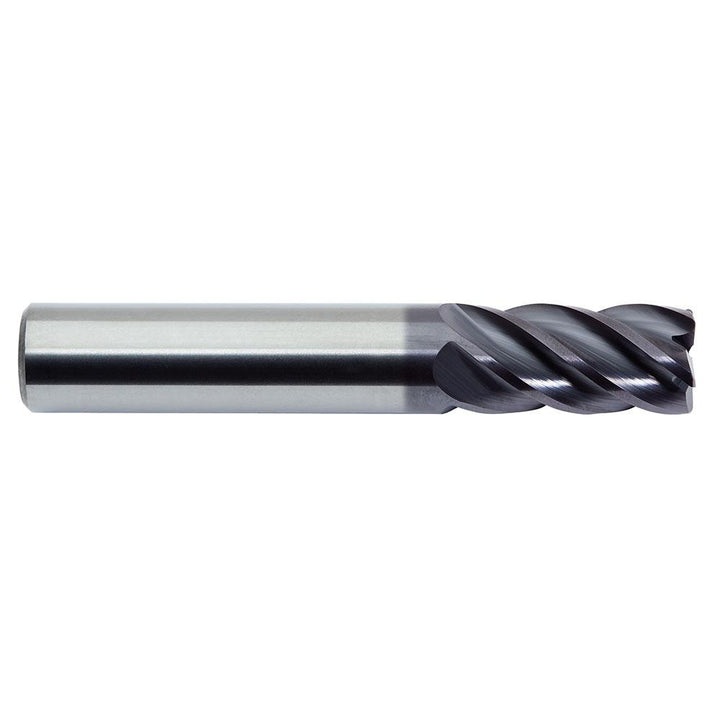

1/2" 5-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17850010A

M.A. Ford.

1/2" 5-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17850010A

MFR# 17850010ASeries 178

$119.10List $152.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17850010A is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 1 length of cut, 3 overall length. Series 178.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle38
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000 to -0.003 in
Number of flutes5
Overall length in3
Shank diameter in1/2
Shank diameter tolerance+0/-0.0043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
