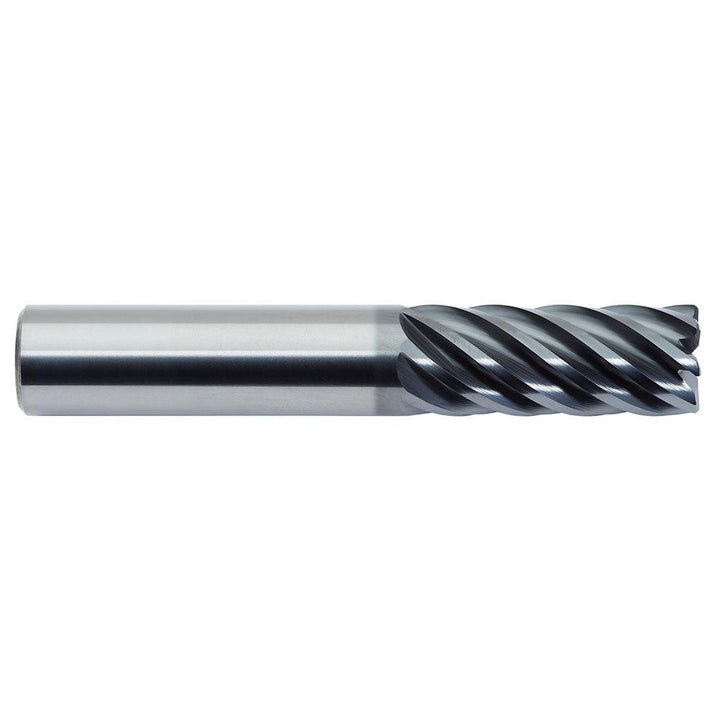

0.4724in" 7-Flute Solid Carbide Corner Radius End Mill, ALtima Blaze - M.A. Ford. 18047207B

M.A. Ford.

0.4724in" 7-Flute Solid Carbide Corner Radius End Mill, ALtima Blaze - M.A. Ford. 18047207B

MFR# 18047207BSeries 180

$139.25List $178.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes7
MaterialSolid Carbide
CoatingALtima Blaze

Description

The M.A. Ford. 18047207B is a 0.4724in 7-flute Solid Carbide corner radius end mill with a ALtima Blaze finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. Series 180.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishALtima Blaze
Coolant throughNo
Corner radius0.1180
Corner radius tolerance+0.050 to -0.050 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut0.4375in
Length typeRegular
Manufacturers catalog number18047207B
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material removal typeFinishing
Mill diameter0.4724in
Mill diameter tolerance+0.000/-0.070 mm
Number of flutes7
Overall length (mm)84.00mm
PitchSuper Close
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Reach length (mm)32.00
Shank diameter (mm)12.00mm
Shank diameter tolerance+0.000/-0.011 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
