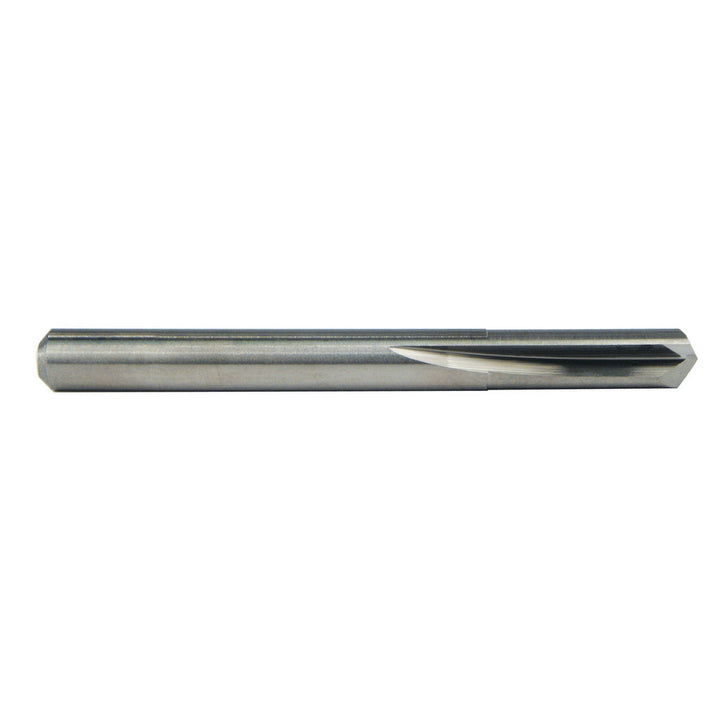

1/32" Carbide Drill Bit, 135° point - M.A. Ford. 20003120

M.A. Ford.

1/32" Carbide Drill Bit, 135° point - M.A. Ford. 20003120

MFR# 20003120Series 200

$20.75List $26.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/32
Flutes2

Description

The M.A. Ford. 20003120 is a 1/32" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-1/2 overall length. Series 200.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm; +0.0000 to -0.0005 in
Drill bit size in1/32
Drill bit typeStraight-Flute
Drill point angle135
Flute by diameter ratio3xD
Flute length0.1880
Number of flutes2
Overall length in1-1/2
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Tool Steel; Aluminum; Austenitic Stainless Steel; Cast Iron; Hardened Steel; High Temperature Alloys; Low Carbon Steel; Medium Carbon Steel
Shank diameter0.0630
Shank length in1-5/16
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
