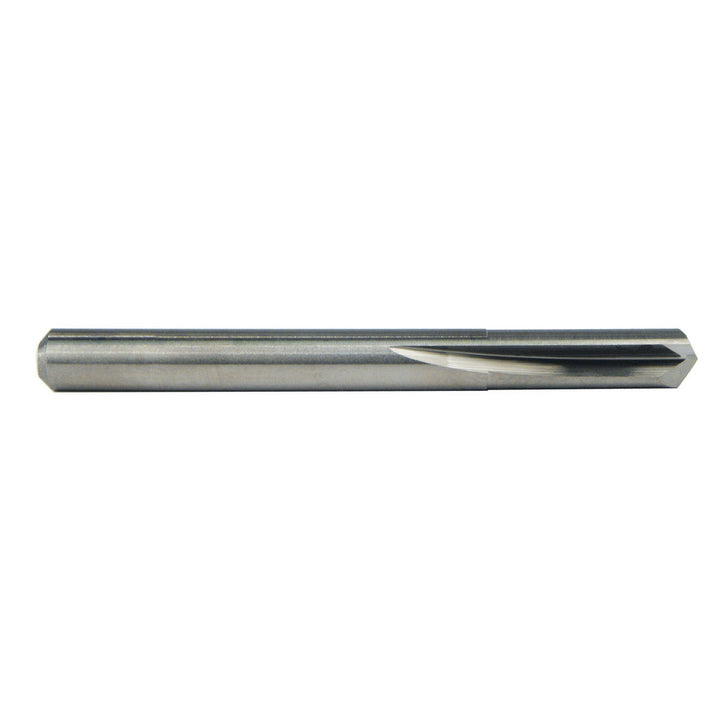

#49 Carbide Drill Bit, 135° point - M.A. Ford. 20007300

M.A. Ford.

#49 Carbide Drill Bit, 135° point - M.A. Ford. 20007300

MFR# 20007300Series 200

$18.27List $23.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 20007300 is a #49 Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/8 flute length, 1-1/2 overall length. Series 200.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.0730
Drill bit size wire#49
Drill bit typeStraight-Flute
Drill point angle135
Flute length in3/8
Number of flutes2
Overall length in1-1/2
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter0.0730
Shank length in1-1/8
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
