M.A. Ford.

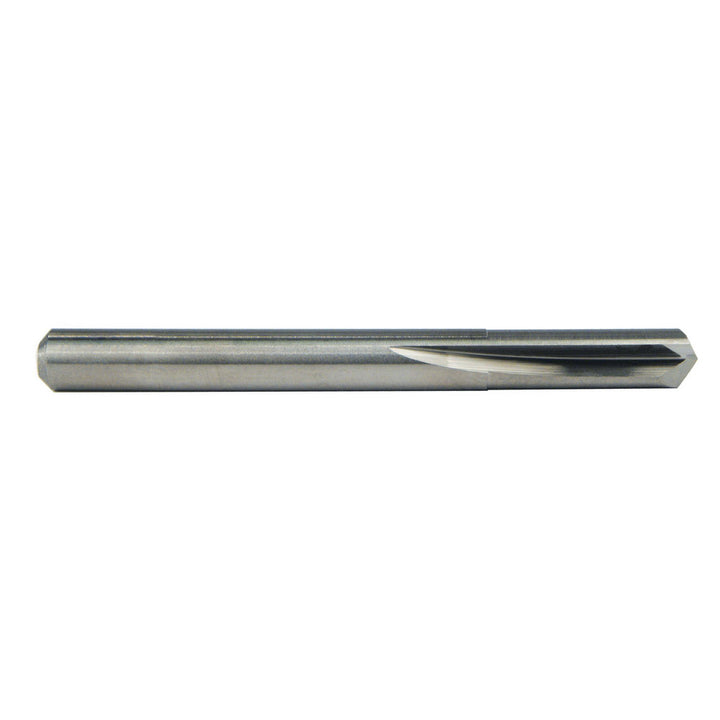

0.1181" Carbide Drill Bit, 135° point - M.A. Ford. 20011810
MFR# 20011810Series 200
$25.60List $32.26
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 20011810 is a 0.1181" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 200.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm; +0.0000 to -0.0005 in
Drill bit size0.1181
Drill bit typeStraight-Flute
Drill point angle135
Flute length (mm)16.00
Number of flutes2
Overall length (mm)38.00
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter (mm)3.00
Shank length (mm)22.00
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
