M.A. Ford.

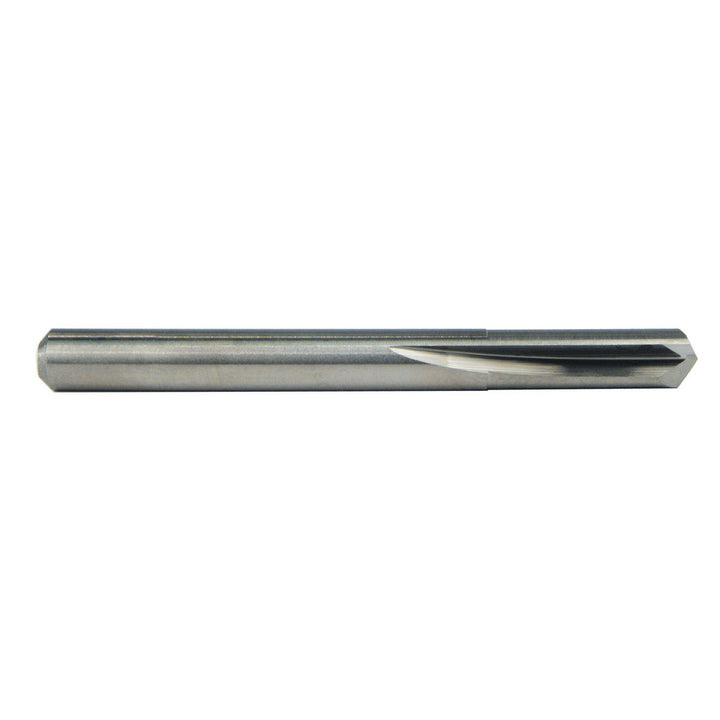

#14 Carbide Drill Bit, 135° point - M.A. Ford. 20018200
MFR# 20018200Series 200
$35.21List $44.37
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 20018200 is a #14 Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 5/8 flute length, 2 overall length. Series 200.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.1820
Drill bit size wire#14
Drill bit typeStraight-Flute
Drill point angle135
Flute length in5/8
Number of flutes2
Overall length in2
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter0.1820
Shank length in1-3/8
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
