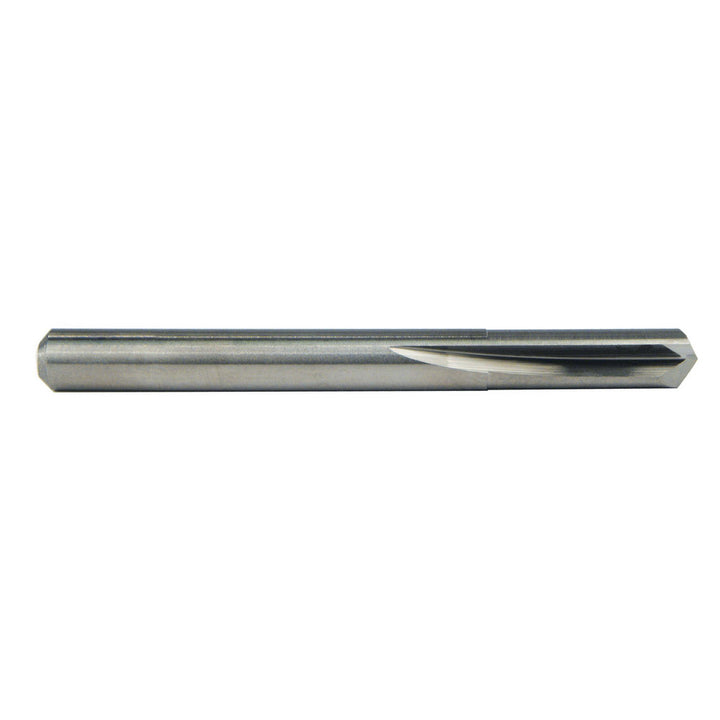

#12 Carbide Drill Bit, 135° point - M.A. Ford. 20018900

M.A. Ford.

#12 Carbide Drill Bit, 135° point - M.A. Ford. 20018900

MFR# 20018900Series 200

$32.63List $41.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 20018900 is a #12 Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 5/8 flute length, 2 overall length. Series 200.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.1890
Drill bit size wire#12
Drill bit typeStraight-Flute
Drill point angle135
Flute length in5/8
Number of flutes2
Overall length in2
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter0.1890
Shank length in1-3/8
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
