M.A. Ford.

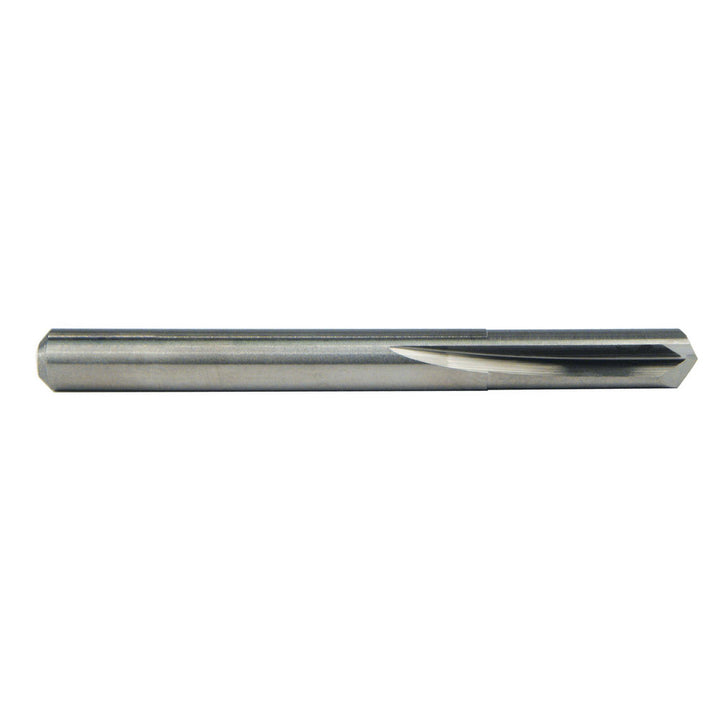

13/32" Carbide Drill Bit, 135° point - M.A. Ford. 20040620
MFR# 20040620Series 200
$105.24List $132.63
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
Description
The M.A. Ford. 20040620 is a 13/32" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1 flute length, 2-3/4 overall length. Series 200.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in13/32
Drill bit typeStraight-Flute
Drill point angle135
Flute length in1
Number of flutes2
Overall length in2-3/4
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter in13/32
Shank length in1-3/4
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
