33/64" Carbide Drill Bit, 135° point - M.A. Ford. 20051560

M.A. Ford.

33/64" Carbide Drill Bit, 135° point - M.A. Ford. 20051560

MFR# 20051560Series 200

$158.12List $202.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size33/64
Flutes2

Description

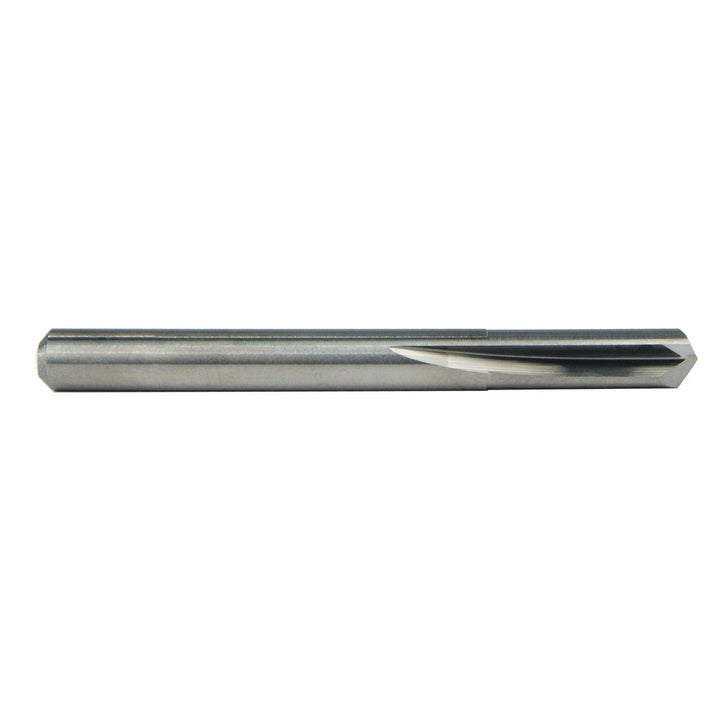

The M.A. Ford. 20051560 is a 33/64" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-1/8 flute length, 3-1/2 overall length. Series 200.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in33/64
Drill bit typeStraight-Flute
Drill point angle135
Flute length in1-1/8
Number of flutes2
Overall length in3-1/2
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter in33/64
Shank length in2-3/8
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
