19/32" Carbide Drill Bit, 135° point - M.A. Ford. 20059380

M.A. Ford.

19/32" Carbide Drill Bit, 135° point - M.A. Ford. 20059380

MFR# 20059380Series 200

$184.25List $236.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size19/32
Flutes2

Description

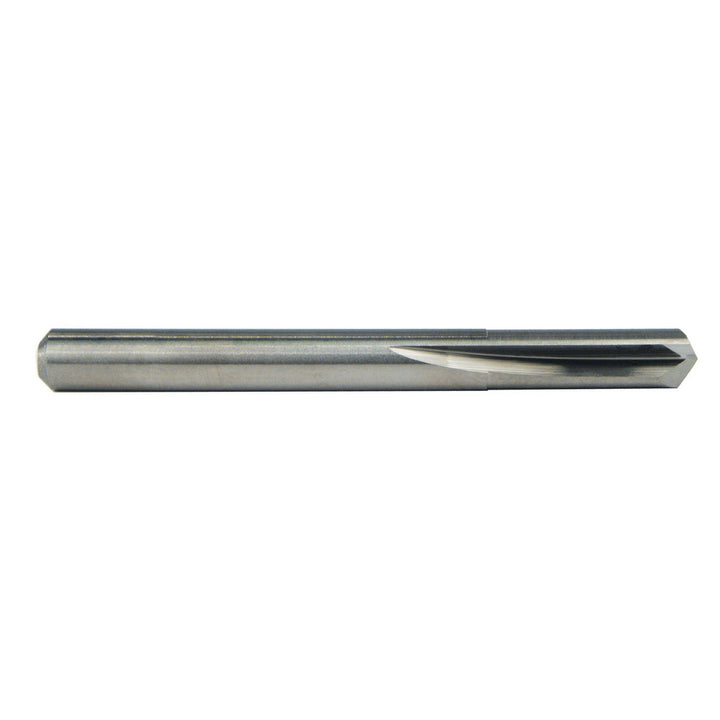

The M.A. Ford. 20059380 is a 19/32" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-1/4 flute length, 3-1/2 overall length. Series 200.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in19/32
Drill bit typeStraight-Flute
Drill point angle135
Flute length in1-1/4
Number of flutes2
Overall length in3-1/2
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter in19/32
Shank length in2-1/4
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
