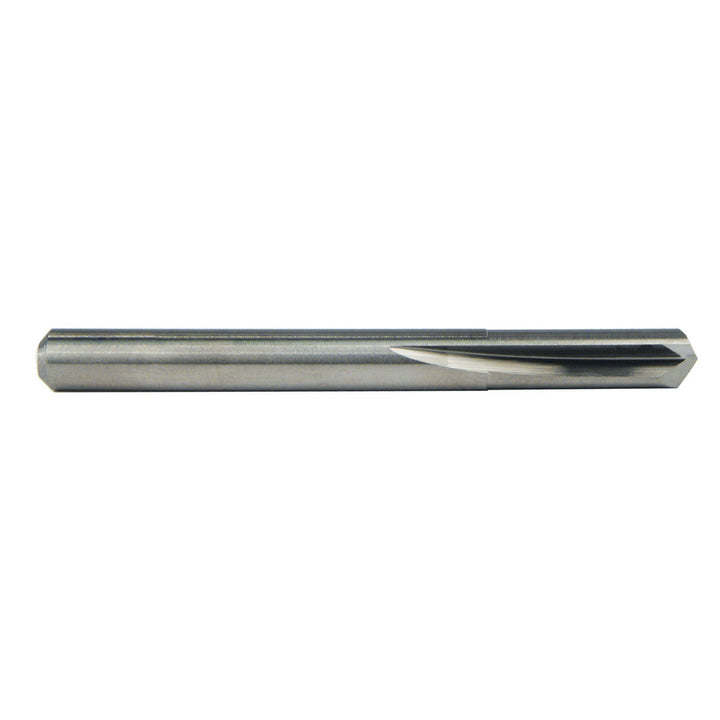

47/64" Carbide Drill Bit, 135° point - M.A. Ford. 20073440

M.A. Ford.

47/64" Carbide Drill Bit, 135° point - M.A. Ford. 20073440

MFR# 20073440Series 200

$338.07List $433.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size47/64
Flutes2

Description

The M.A. Ford. 20073440 is a 47/64" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-1/2 flute length, 4 overall length. Series 200.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in47/64
Drill bit typeStraight-Flute
Drill point angle135
Flute length in1-1/2
Number of flutes2
Overall length in4
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter in47/64
Shank length in2-1/2
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
