M.A. Ford.

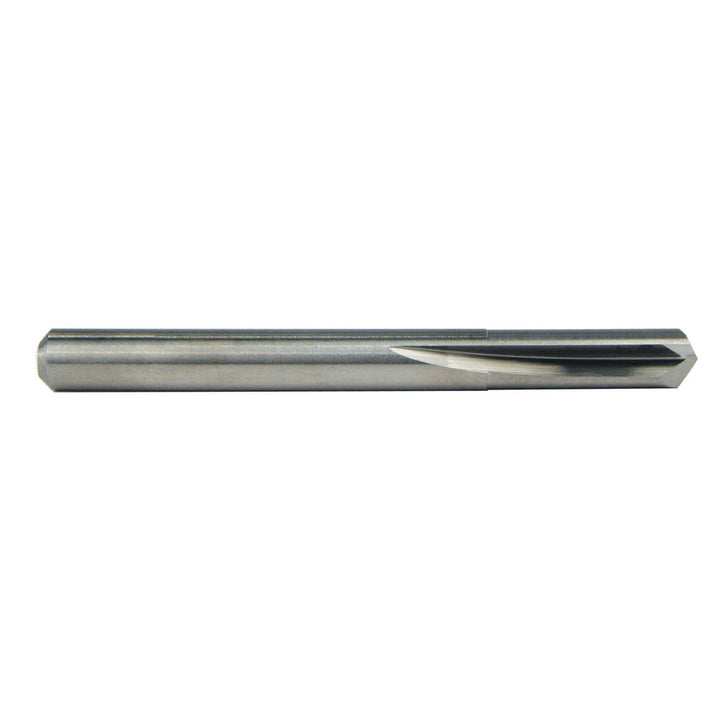

3/4" Carbide Drill Bit, 135° point - M.A. Ford. 20075000
MFR# 20075000Series 200
$402.44List $507.17
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/4
Flutes2
Description
The M.A. Ford. 20075000 is a 3/4" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-1/2 flute length, 4 overall length. Series 200.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in3/4
Drill bit typeStraight-Flute
Drill point angle135
Flute length in1-1/2
Number of flutes2
Overall length in4
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter in3/4
Shank length in2-1/2
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
