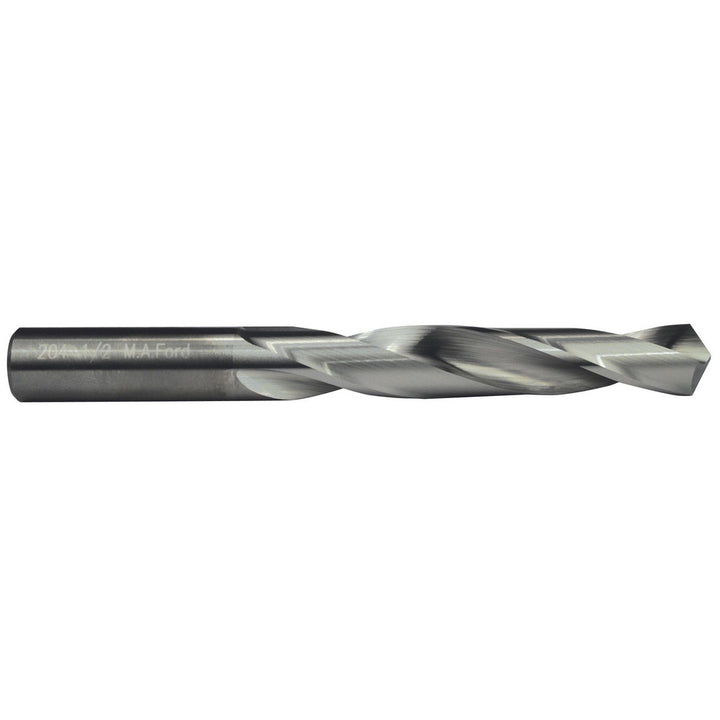

1/32" Solid Carbide Drill Bit, ALtima, 118° point - M.A. Ford. 20403120A

M.A. Ford.

1/32" Solid Carbide Drill Bit, ALtima, 118° point - M.A. Ford. 20403120A

MFR# 20403120ASeries 204

$17.64List $22.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/32
Flutes2
CoatingALtima

Description

The M.A. Ford. 20403120A is a 1/32" Solid Carbide drill bit with a ALtima finish, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/8 flute length, 1-1/2 overall length. Series 204.

Specifications

Coating finishALtima
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit materialSolid Carbide
Drill bit size in1/32
Drill bit size range0.0000 - 0.0500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in3/8
Flute typeSpiral
Number of flutes2
Overall length in1-1/2
Point typeFour Facet
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/32
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
