M.A. Ford.
#57 Solid Carbide Drill Bit, ALtima, 118° point - M.A. Ford. 20404300A
MFR# 20404300ASeries 204
$19.59List $25.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description

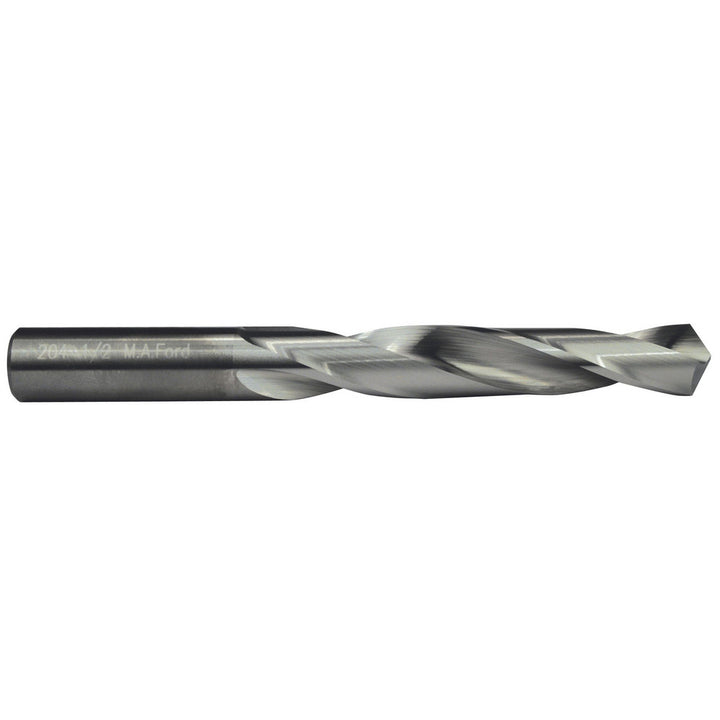

The M.A. Ford. 20404300A is a #57 Solid Carbide drill bit with a ALtima finish, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/4 flute length, 1-1/2 overall length. Series 204.
Specifications
Coating finishALtima
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit materialSolid Carbide
Drill bit size0.0430
Drill bit size range0.0000 - 0.0500
Drill bit size wire#57
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in3/4
Flute typeSpiral
Number of flutes2
Overall length in1-1/2
Point typeFour Facet
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.0430
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
