#55 Solid Carbide Drill Bit, 118° point - M.A. Ford. 20405200

M.A. Ford.

#55 Solid Carbide Drill Bit, 118° point - M.A. Ford. 20405200

MFR# 20405200Series 204

$15.04List $19.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

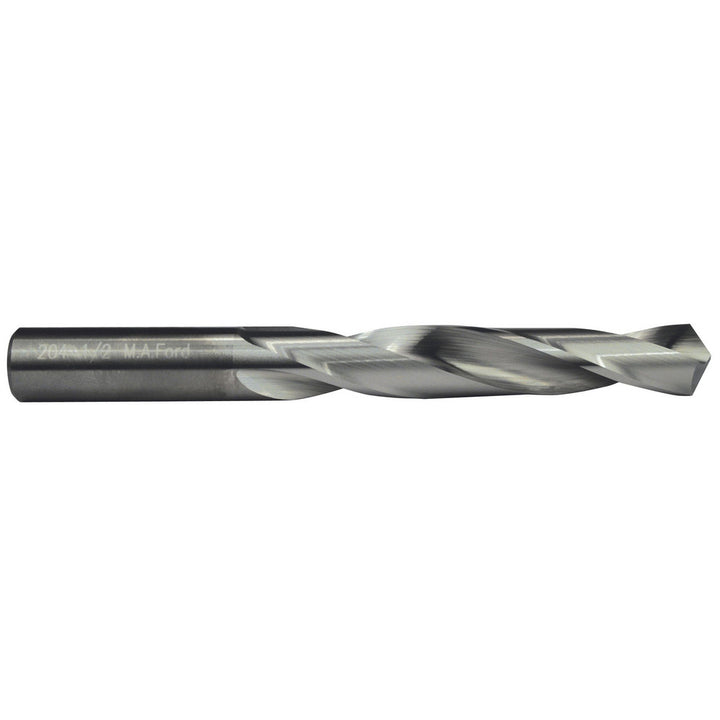

The M.A. Ford. 20405200 is a #55 Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/4 flute length, 1-1/2 overall length. Series 204.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.0520
Drill bit size range0.0500 - 0.1000
Drill bit size wire#55
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in3/4
Flute typeSpiral
Number of flutes2
Overall length in1-1/2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.0520
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
