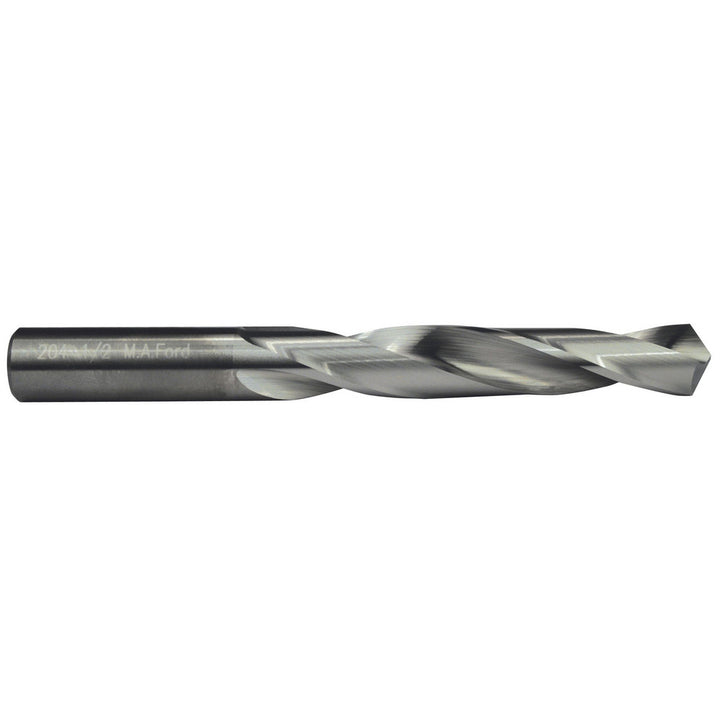

3/32" Solid Carbide Drill Bit, AlTiN, 118° point - M.A. Ford. 20409380A

M.A. Ford.

3/32" Solid Carbide Drill Bit, AlTiN, 118° point - M.A. Ford. 20409380A

MFR# 20409380ASeries 204

$21.21List $27.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 20409380A is a 3/32" Solid Carbide drill bit with a AlTiN finish, 118° point. Suited for steel, stainless steel, cast iron. 1 flute length, 2 overall length. Series 204.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1
Flute typeRegular Spiral
Number of flutes2
Overall length in2
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in3/32
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
