M.A. Ford.

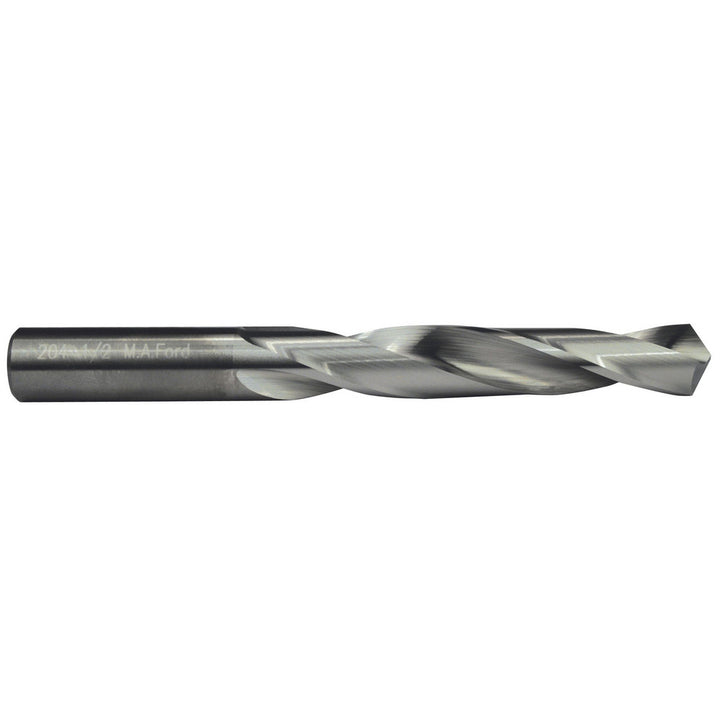

#31 Solid Carbide Drill Bit, AlTiN, 118° point - M.A. Ford. 20412000A
MFR# 20412000ASeries 204
$30.42List $38.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 20412000A is a #31 Solid Carbide drill bit with a AlTiN finish, 118° point. Suited for steel, stainless steel, cast iron. 1-1/4 flute length, 2-1/4 overall length. Series 204.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1200
Drill bit size range0.1000 - 0.1500
Drill bit size wire#31
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-1/4
Flute typeRegular Spiral
Number of flutes2
Overall length in2-1/4
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter0.1200
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
