#29 Solid Carbide Drill Bit, AlTiN, 118° point - M.A. Ford. 20413600A

M.A. Ford.

#29 Solid Carbide Drill Bit, AlTiN, 118° point - M.A. Ford. 20413600A

MFR# 20413600ASeries 204

$28.01List $35.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlTiN

Description

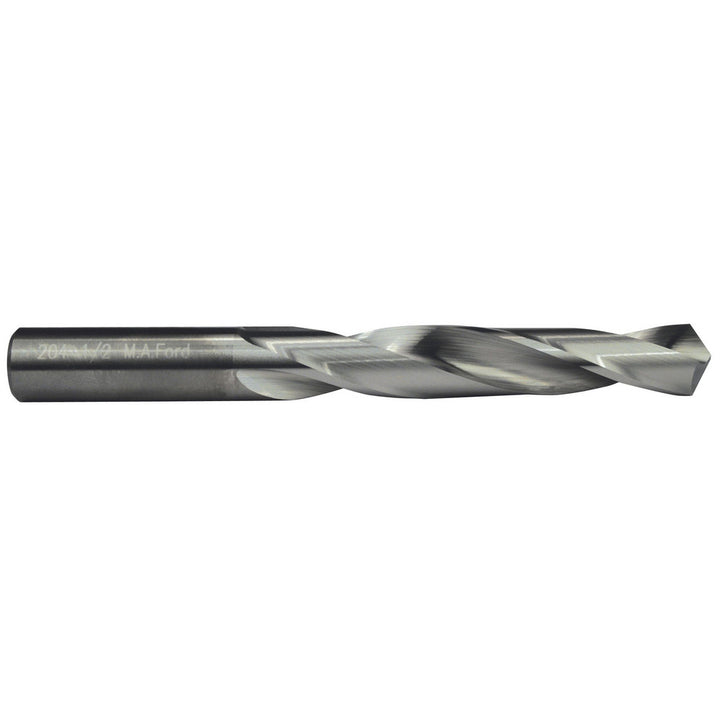

The M.A. Ford. 20413600A is a #29 Solid Carbide drill bit with a AlTiN finish, 118° point. Suited for steel, stainless steel, cast iron. 1-3/8 flute length, 2-1/2 overall length. Series 204.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1360
Drill bit size range0.1000 - 0.1500
Drill bit size wire#29
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-3/8
Flute typeRegular Spiral
Number of flutes2
Overall length in2-1/2
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter0.1360
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
