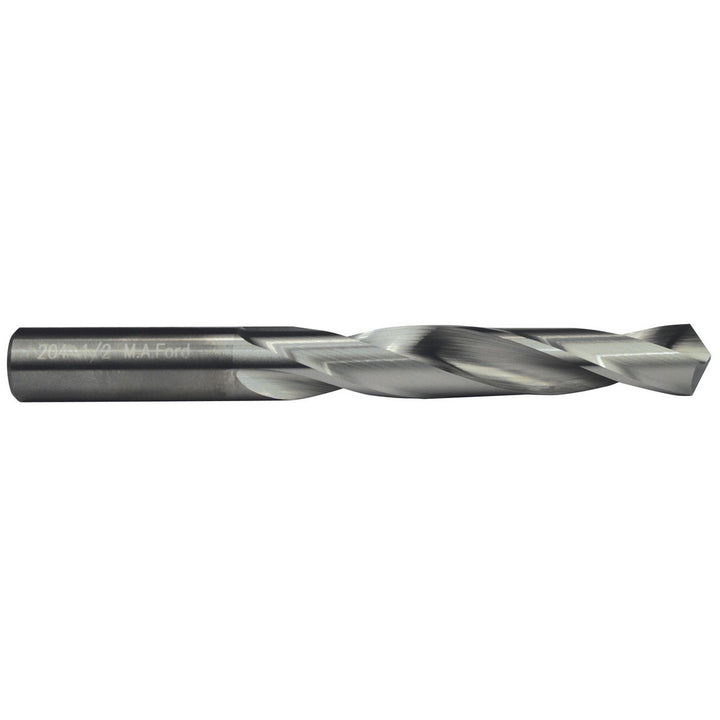

#25 Solid Carbide Drill Bit, 118° point - M.A. Ford. 20414950

M.A. Ford.

#25 Solid Carbide Drill Bit, 118° point - M.A. Ford. 20414950

MFR# 20414950Series 204

$25.59List $32.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 20414950 is a #25 Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-3/8 flute length, 2-1/2 overall length. Series 204.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1495
Drill bit size range0.1000 - 0.1500
Drill bit size wire#25
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-3/8
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.1495
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
