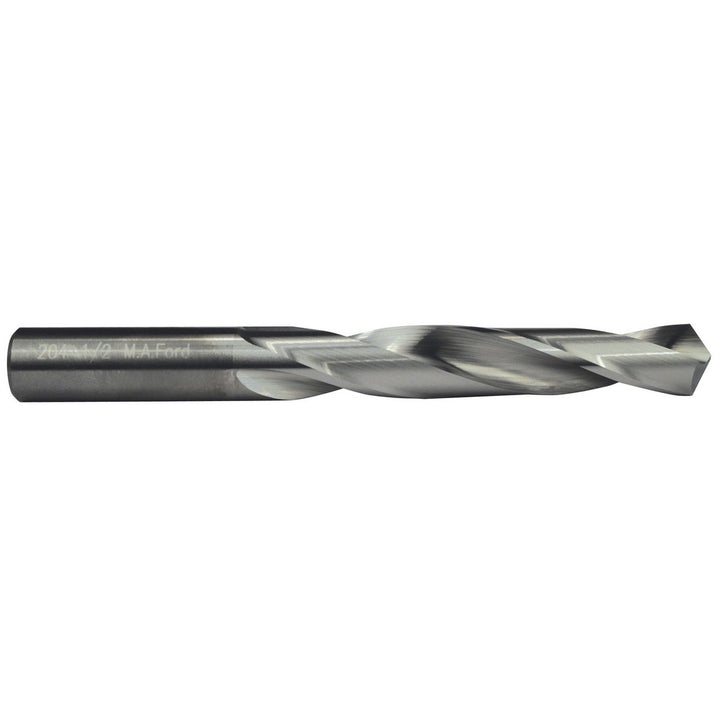

Letter I Solid Carbide Drill Bit, 118° point - M.A. Ford. 20427200

M.A. Ford.

Letter I Solid Carbide Drill Bit, 118° point - M.A. Ford. 20427200

MFR# 20427200Series 204

$58.41List $74.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 20427200 is a Letter I Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 2-1/8 flute length, 3-1/2 overall length. Series 204.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit materialSolid Carbide
Drill bit size0.2720
Drill bit size letterI
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-1/2
Point typeFour Facet
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2720
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
