21/64" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20432810

M.A. Ford.

21/64" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20432810

MFR# 20432810Series 204

$66.21List $84.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/64
Flutes2

Description

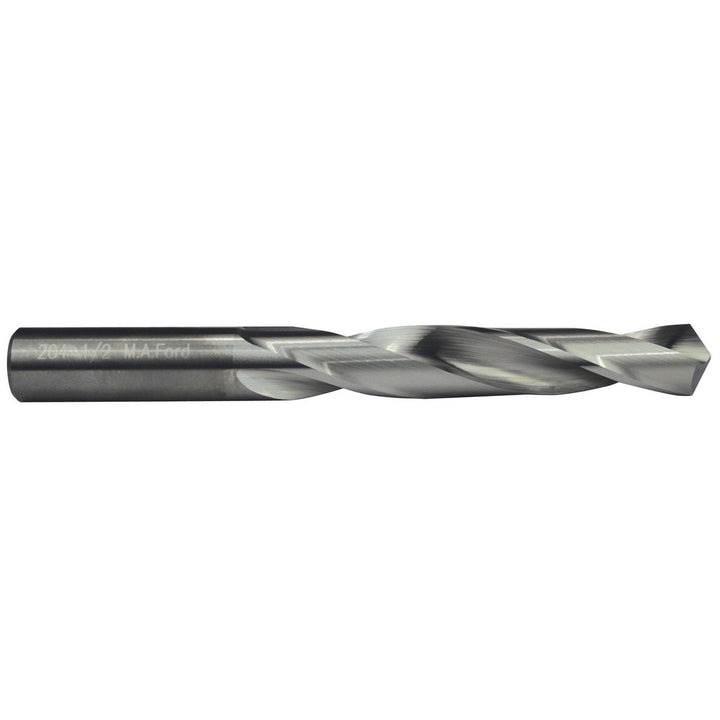

The M.A. Ford. 20432810 is a 21/64" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 2-1/2 flute length, 4 overall length. Series 204.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-1/2
Flute typeSpiral
Number of flutes2
Overall length in4
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in21/64
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
