M.A. Ford.
3/8" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20437500
MFR# 20437500Series 204
$99.61List $125.54
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
Description

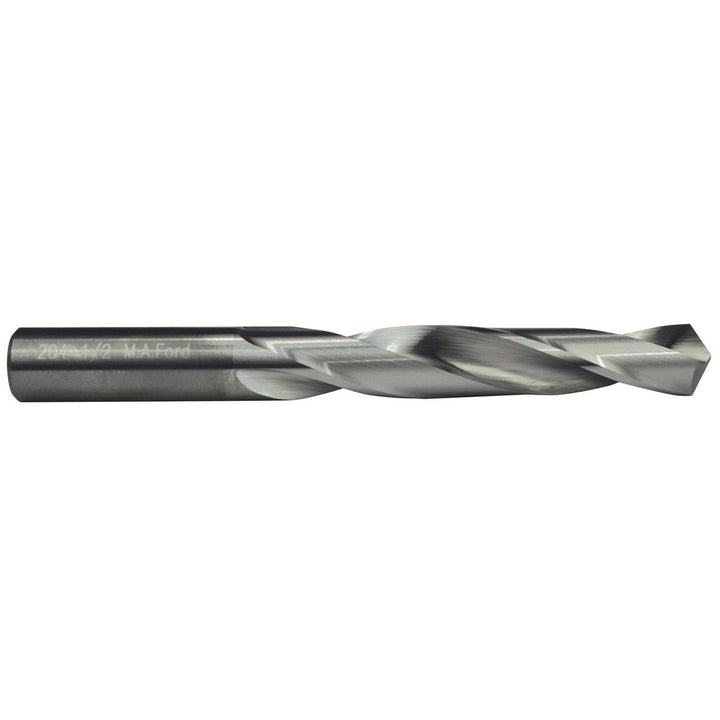

The M.A. Ford. 20437500 is a 3/8" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 2-3/4 flute length, 4-1/4 overall length. Series 204.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-3/4
Flute typeSpiral
Number of flutes2
Overall length in4-1/4
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
