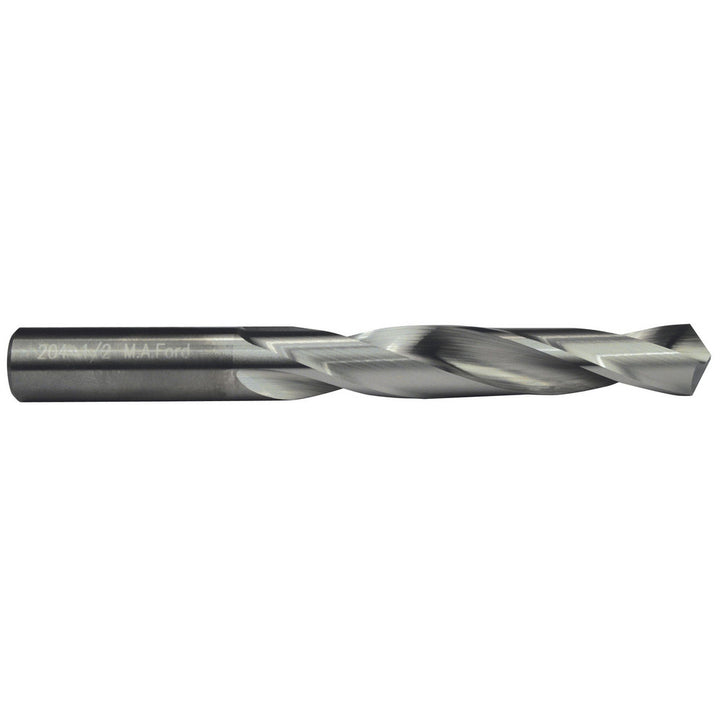

1/2" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20450000

M.A. Ford.

1/2" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20450000

MFR# 20450000Series 204

$155.73List $199.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2

Description

The M.A. Ford. 20450000 is a 1/2" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3 flute length, 4-3/4 overall length. Series 204.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in3
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
