M.A. Ford.

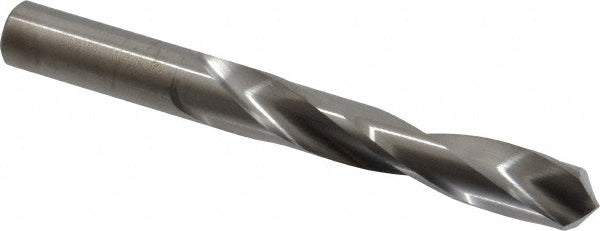

35/64" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20454690
MFR# 20454690
$185.51List $237.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size35/64
Description
The M.A. Ford. 20454690 is a 35/64" Solid Carbide drill bit, 118° point. 3-1/4 flute length, 5 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in35/64
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute length in3-1/4
Flute typeSpiral
Overall length in5
Point typeFaceted
Shank diameter in35/64
Shank typeStraight-Cylindrical
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
