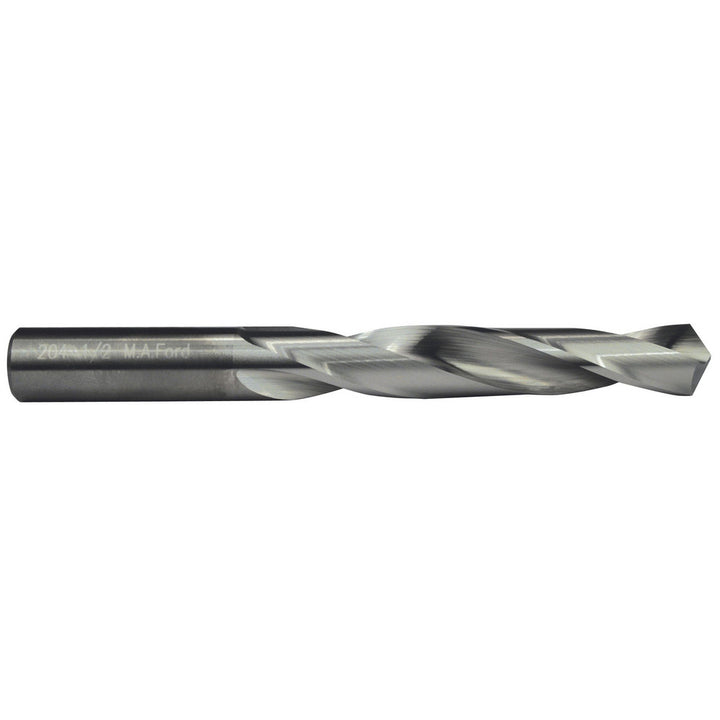

21/32" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20465620

M.A. Ford.

21/32" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20465620

MFR# 20465620Series 204

$277.58List $356.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/32
Flutes2

Description

The M.A. Ford. 20465620 is a 21/32" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3-5/8 flute length, 5-1/2 overall length. Series 204.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in21/32
Drill bit size range0.6500+
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in3-5/8
Flute typeSpiral
Number of flutes2
Overall length in5-1/2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in21/32
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
