M.A. Ford.

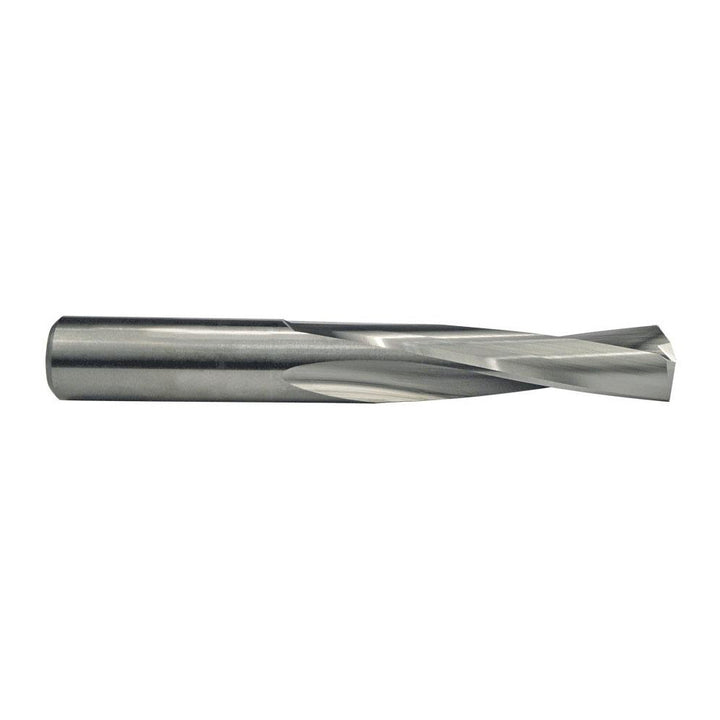

0.2756" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - M.A. Ford. 20527560T
MFR# 20527560TSeries 205
$89.41List $112.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The M.A. Ford. 20527560T is a 0.2756" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 205.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.000 to -0.013 mm
Drill bit size0.2756
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio3xD
Flute length (mm)38.00
Flute typeSpiral
Number of flutes2
Overall length2.6772
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2756
Shank length1.1811
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
