M.A. Ford.

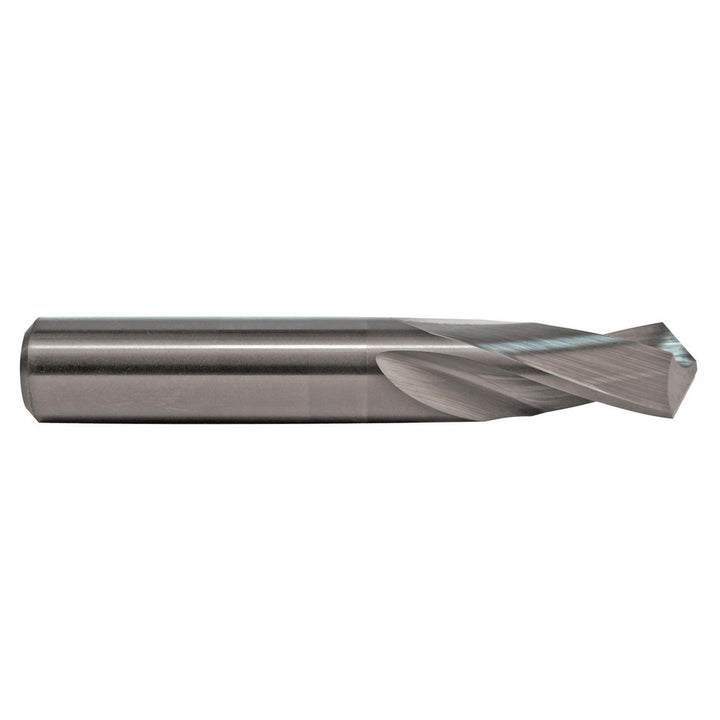

#55 Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20605200
MFR# 20605200Series 206
$9.90List $12.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 20605200 is a #55 Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/8 flute length, 1-1/2 overall length. Series 206.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.0520
Drill bit size range0.0000 to 0.1000
Drill bit size wire#55
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in3/8
Flute typeSpiral
Number of flutes2
Overall length in1-1/2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.0520
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
