#34 Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20611100

M.A. Ford.

#34 Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20611100

MFR# 20611100Series 206

$13.68List $17.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

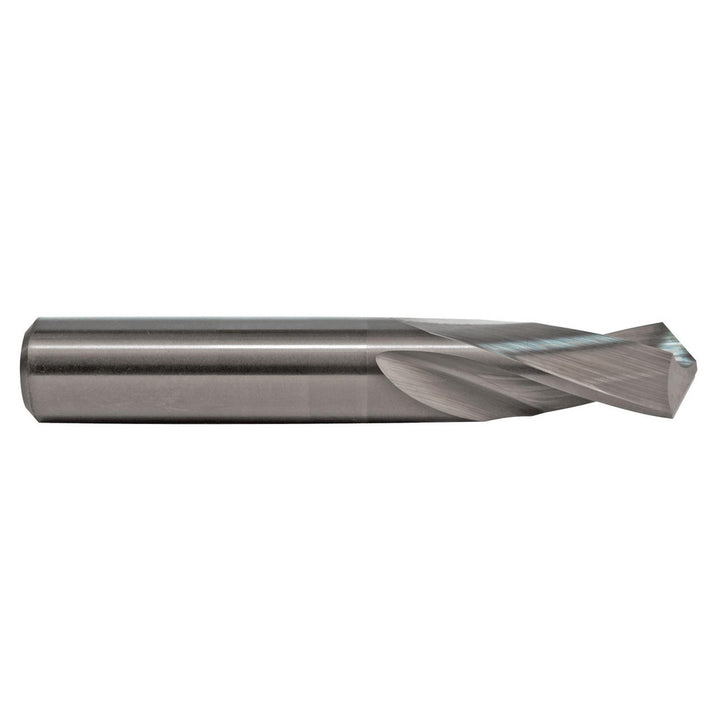

The M.A. Ford. 20611100 is a #34 Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 5/8 flute length, 2 overall length. Series 206.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.1110
Drill bit size range0.1000 to 0.1500
Drill bit size wire#34
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in5/8
Flute typeSpiral
Number of flutes2
Overall length in2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.1110
Shank length in1-3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
