#21 Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20615900
MFR# 20615900Series 206
$17.74List $22.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

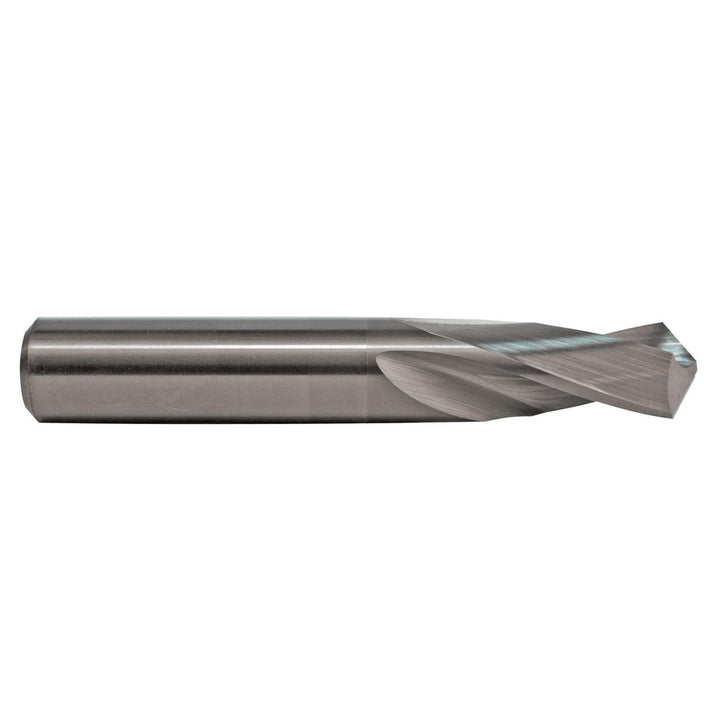

The M.A. Ford. 20615900 is a #21 Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/4 flute length, 2 overall length. Series 206.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.1590
Drill bit size range0.1500 to 0.2000
Drill bit size wire#21
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in3/4
Flute typeSpiral
Number of flutes2
Overall length in2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.1590
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
