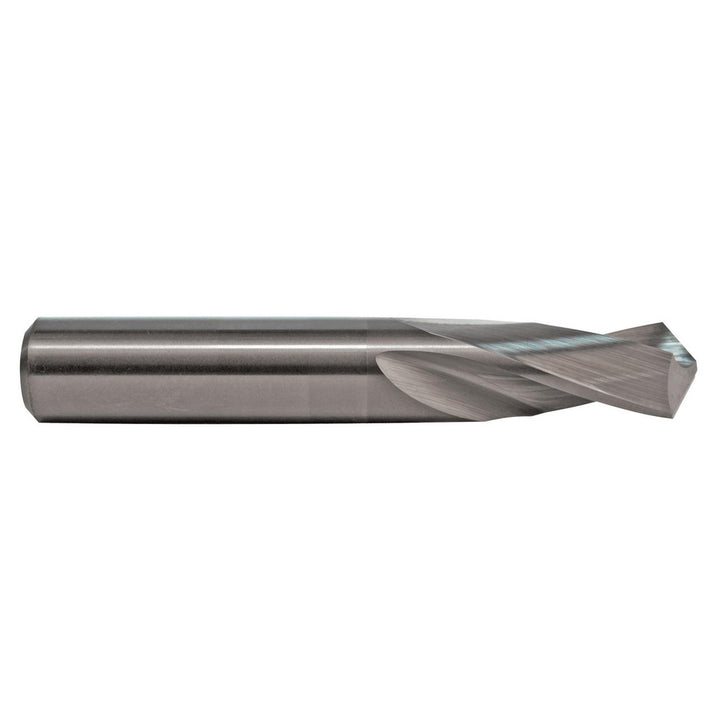

3/16" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20618750

M.A. Ford.

3/16" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20618750

MFR# 20618750Series 206

$22.91List $29.37 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2

Description

The M.A. Ford. 20618750 is a 3/16" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/4 flute length, 2-3/16 overall length. Series 206.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in3/16
Drill bit size range0.1500 to 0.2000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in3/4
Flute typeSpiral
Number of flutes2
Overall length in2-3/16
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.1875
Shank length in1-7/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
