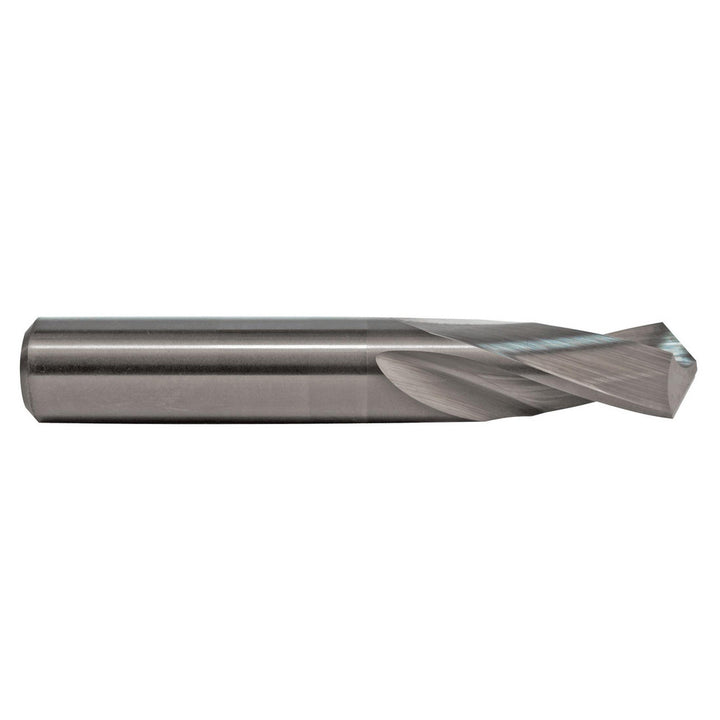

17/64" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20626600

M.A. Ford.

17/64" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20626600

MFR# 20626600Series 206

$40.75List $52.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/64
Flutes2

Description

The M.A. Ford. 20626600 is a 17/64" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1 flute length, 2-1/2 overall length. Series 206.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in17/64
Drill bit size letterH
Drill bit size range0.2500 to 0.3000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2660
Shank length in1-1/2
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
