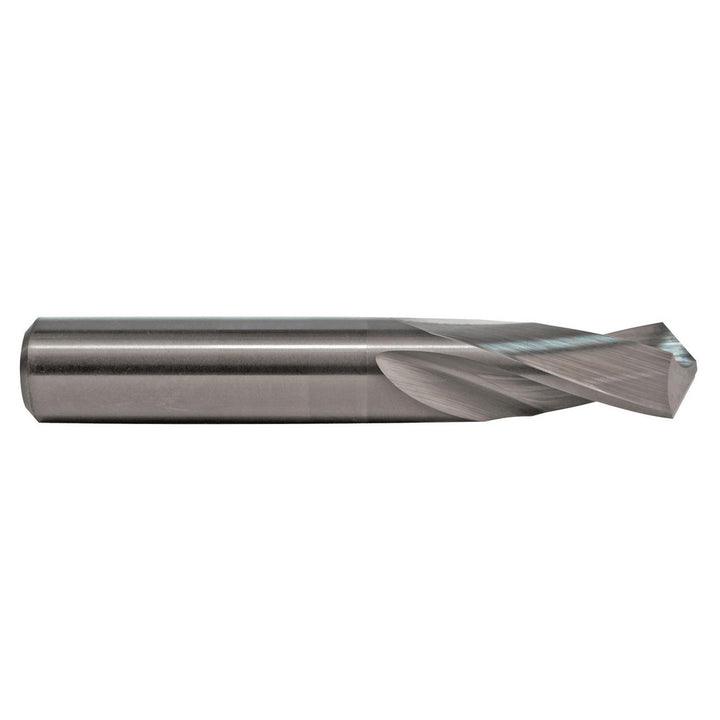

Letter M Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20629500

M.A. Ford.

Letter M Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20629500

MFR# 20629500Series 206

$46.71List $59.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 20629500 is a Letter M Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-1/4 flute length, 2-1/2 overall length. Series 206.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.2950
Drill bit size letterM
Drill bit size range0.2500 to 0.3000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2950
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
