7/16" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20643750

M.A. Ford.

7/16" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20643750

MFR# 20643750Series 206

$76.65List $98.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16

Description

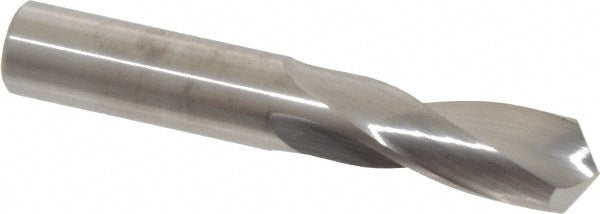

The M.A. Ford. 20643750 is a 7/16" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metals, plastics. 1-1/4 flute length, 2-3/4 overall length. Series 206.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in7/16
Drill bit size range0.4000 to 0.4500
Drill point angle118
Flute length in1-1/4
Flute typeSpiral
Overall length in2-3/4
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metals; Plastics
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
