M.A. Ford.
11/16" Solid Carbide Drill Bit, 118° point - M.A. Ford. 20668750
MFR# 20668750Series 206
$199.56List $251.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/16
Description

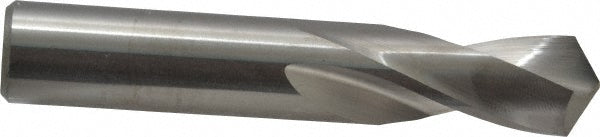

The M.A. Ford. 20668750 is a 11/16" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metals, plastics. 1-7/8 flute length, 4 overall length. Series 206.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in11/16
Drill bit size range0.6000+
Drill point angle118
Flute length in1-7/8
Flute typeSpiral
Overall length in4
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metals; Plastics
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
