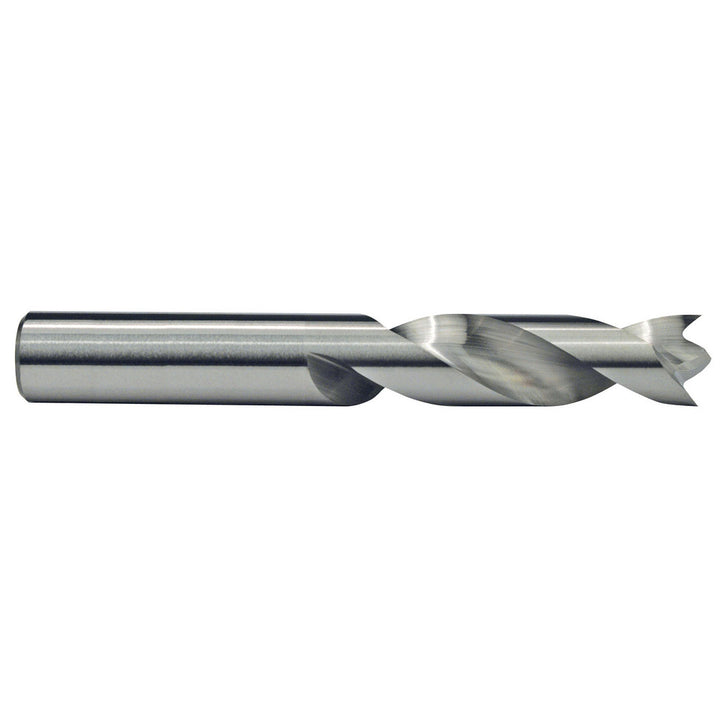

3/32" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20709380

M.A. Ford.

3/32" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20709380

MFR# 20709380Series 207

$24.11List $30.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
Flutes2

Description

The M.A. Ford. 20709380 is a 3/32" Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 1/2 flute length, 1-3/4 overall length. Series 207.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in3/32
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in1/2
Flute typeSpiral
Number of flutes2
Overall length in1-3/4
Point typeBrad
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.0938
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
